- What is Durawood ?Durawood is manufacured by AIWA
-
Durawood is an uniquely extruded plastic board.
Available size range
Thickness: 3-50mm
Width: 60-1,220mm
Length: 2,000mm
Advantages of Durawood
Scratch Free
Protect class-A surface
Flexible & Unbreakable
Easy to screw
High impact absorbing
Excellent resistance to
chemicals & solvents
No absorption of oil
Heavy load resistant
Easy to machine
Examples of use
Durawood saves
| INITIAL COST | MAINTENANCE | DAMAGES SENSITIVE PARTS | Product life time | RESULT AFTER 1-2 YEARS |
|
|---|---|---|---|---|---|
| DURAWOOD |  |
― | ― | ― | 2 |
| CORRUGATED PLASTIC | |
|
|
|
10 |
| OTHER | |
|
|
|
7 |

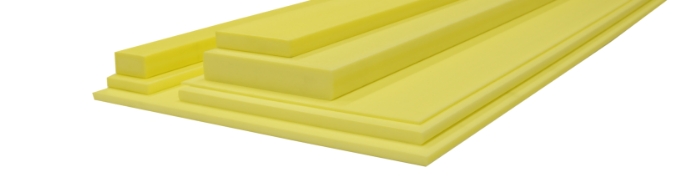

Size of Durawood（colour : yellow）
| Thickness〔mm〕 | T3 | T5 | T7 | T10 | T15 | T20 | T25 | T30 | T40 | T50 |
|---|---|---|---|---|---|---|---|---|---|---|
| Width〔mm〕 | W60 | |||||||||
| W75 | ||||||||||
| W90 | ||||||||||
| W100 | W100 | |||||||||
| *W120 | ||||||||||
| W150 | ||||||||||
| *W200 | *W200 | *W200 | *W200 | |||||||
| W250 | W250 | W250 | W250 | W250 | W250 | W250 | ||||
| W300 | W300 | W300 | ||||||||
| W440 | W440 | W440 | W440 | W440 | W440 | |||||
| W640 | W640 | W640 | W640 | |||||||
| W1,220 | W1,220 | W1,220 | W1,220 | W1,220 | W1,220 | |||||
| Length〔mm〕 | L2,000 | L2,000 | L2,000 | L2,000 | L2,000 | L2,000 | L2,000 | L2,000 | L2,000 | L2,000 |
* are made to order.

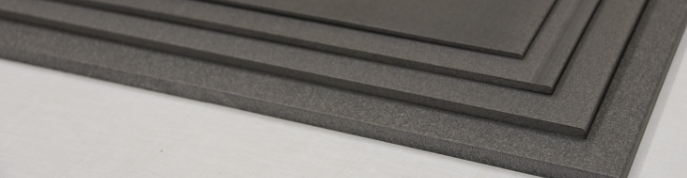

Size of Durawood（colour : grey）
| Thickness〔mm〕 | T5 | T7 | T10 | T15 |
|---|---|---|---|---|
| Width〔mm〕 | W440 | W440 | ||
| W640 | W640 | W640 | ||
| Length〔mm〕 | L2,000 | L2,000 | L2,000 | L2,000 |
Product Properties
| ITEM | TEST METHOD | UNIT | DURAWOOD | |
|---|---|---|---|---|
| ISO | JIS | |||
| Density | ISO 845 | JIS K7222 | g/cm3 | 0.51 |
| Water Absorption | ISO 62 | JIS K7209 | % | 0.22 |
| Bending Strength | ISO 1209-2 | JIS K7221-2 | MPa | 10.8 |
| Bending Young | ISO 1209-2 | JIS K7221-2 | MPa | 644 |
| Compessive Strength (10%) | ISO 844 | JIS K7220 | MPa | 32.9 |
| Charpy No Notch | ISO 179-1 | JIS K7111-1 | kJ/m2 | 11.841 |
| Chapry With Notch | ISO 179-1 | JIS K7111-1 | kJ/m2 | 4.684 |
| Abrasion Index | ISO 9352 | JIS K7204 | g | 0.009 |
| Thermal Expansion (23ºC ~ 60ºC) |
ISO 11359-2 | JIS K7187 | /ºC | 12.6×10-5 |
